中航光电高速Cable Tray组件，打造一站式高速互连体验

　　海量数据（603138）的实时传输需求，对信息通信系统的带宽、速率和稳定性提出了前所未有的严苛要求。长期以来，PCB一直是电子设备内部信号传输的主要载体，但在高频高速传输场景下，其性能损耗的局限性愈发明显。采用新型材料或增加PCB层数来优化损耗问题，会导致成本大幅攀升，且难以从根本上解决问题。

　　与PCB相比，高速线缆组件凭借其独特的技术优势成为破解上述困境的有效方案，不仅能够有效降低信号衰减和电磁干扰，并且在高频场景下能够展现出优异的信号完整性。在此背景下，中航光电（002179）推出高速Cable Tray组件，由高速线缆组件搭配专用结构件组成，将机柜、浮动机构、高速连接器等核心部件集成为一体化网络模组，实现数据中心整机柜网络的集成化部署。

　　Real-time transmission requirements for massive data have imposed stringent demands on the bandwidth,speed,and stability of information and communication systems.For a long time,PCBs have been the primary carrier for internal signal transmission in electronic devices.However,their limitations related to performance loss have become increasingly prominent.Addressing loss issues by adopting new materials or increasing PCB layers leads to significant cost increases and fails to address the root cause.

　　Compared with PCBs,high-speed cable assemblies have emerged as an effective solution to this dilemma.They not only effectively reduce signal attenuation and electromagnetic interference but also show excellent signal integrity in high-frequency scenarios.Against this backdrop,JONHON has launched its high-speed cable tray assemblies.Composed of high-speed cable assemblies paired with structural components,these assemblies integrate core parts such as cabinets,floating mechanisms,and high-speed connectors into an integrated network module,enabling integrated deployment of whole-cabinet networks in data centers.

　　产品简介

　　高速Cable Tray组件专为数据中心场景设计，实现服务器与交换机节点的高速稳定互连，融合高速传输、低插入损耗、抗电磁干扰等核心优势，通过集成化设计解决数据中心运维复杂、空间紧张等实际痛点，为客户提供整机高速互连的一站式解决方案。

　　Designed specifically for data center scenarios,the high-speed cable tray assemblies enable high-speed,stable interconnection between servers and switch nodes.Integrating core advantages like high-speed transmission,low insertion loss,and EMI resistance,they address pain points in data centers—such as complex O&M and space constraints—through integrated design,delivering a one-stop solution for total high-speed system interconnection.

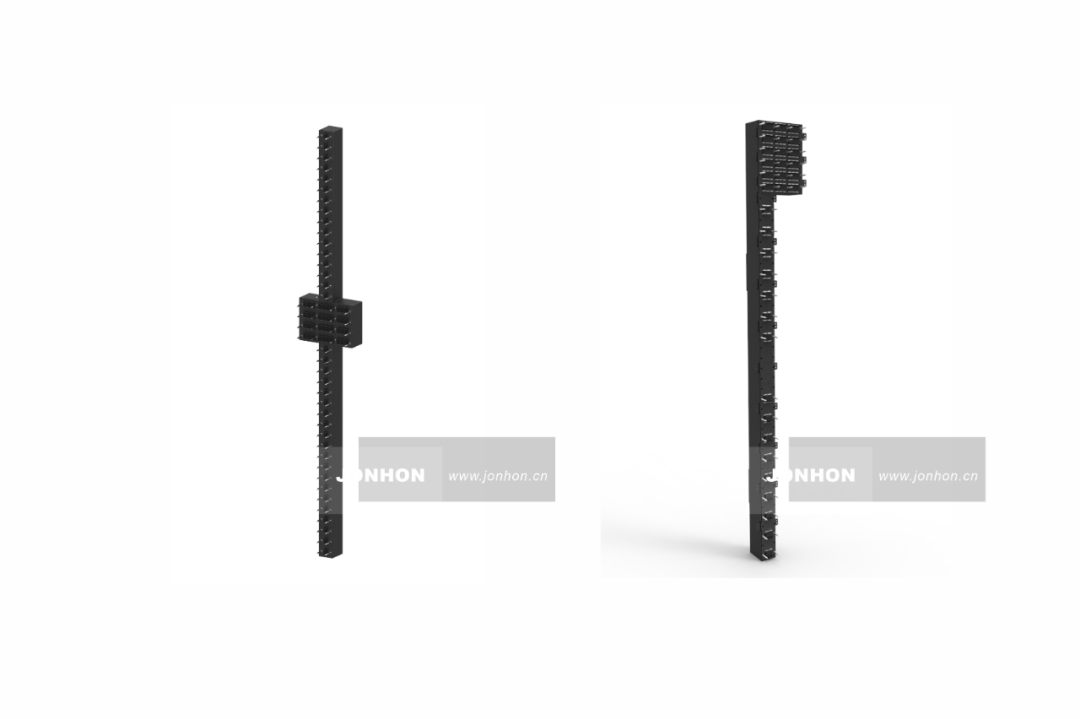

　　“ 高速Cable Tray组件”

　　产品亮点

　　1.定制化设计，铜缆连接性能更优

　　可按需定制外形及接线关系，适配性更强。相比传统正交架构，铜缆连接损耗降低，散热效率提升，高频场景性能更稳定。

　　2.多级引导，盲插运维便捷

　　机柜固定连接器定位，内部线缆有序互连，配合浮动机构实现服务器与交换机节点盲插，便于数据中心整机柜运维。

　　3.三维浮动可靠，补偿误差防损耗

　　浮动机构支持X、Y、Z方向灵活浮动，可补偿安装误差与设备形变，避免刚性连接的机械磨损。

　　4.全速率整机交付，覆盖多元需求

　　适配不同连接器及线缆，单通道支持25G/56G/112G传输，满足数据中心25G至400G以太网信号需求，整机交付即装即用。

　　Customized Design&Copper Cable Connection Customizable form factor and wiring configuration for enhanced adaptability.Compared with traditional orthogonal architectures,copper cable connections enable reduced loss,improved heat dissipation efficiency,and more stable performance in high-frequency scenarios.

　　Multi-level Guidance for Easy Blind Mating&Maintenance Precise positioning of cabinet-mounted connectors and orderly internal cable routing,paired with floating mechanisms,enable blind mating between servers and switch nodes—simplifying whole-cabinet maintenance in data centers.

　　Reliable3D Floating The floating mechanism supports flexible movement along X/Y/Z axes,compensating for installation errors and equipment deformation to avoid mechanical wear from rigid connections.

　　Full-Rate Whole-System Delivery for Diverse Needs Compatible with various connectors and cables,each channel supports25G/56G/112G transmission,meeting data center Ethernet requirements from25G to400G.Whole-system delivery ensures plug-and-play functionality.

　　产品应用

　　应用于服务器/交换机，超级计算机，核心网等设备，可与数据中心机柜配合使用，满足高速信号传输需求。

　　Applied in servers/switches,supercomputers,core networks,and other devices,they are compatible with data center cabinets to meet the requirements for high-speed signal transmission.

　　未来，中航光电将持续聚焦高速互连核心技术研发与场景化创新，紧扣更高传输速率、更优能效表现、更全场景适配等诉求，打造适配AI数据中心、边缘计算节点等新兴场景的定制化解决方案。通过技术迭代推动数据中心互连架构向更高效、更智能、更低碳的方向演进，为全球数字经济可持续增长提供强劲技术支撑。

　　In the future,JONHON will maintain a sustained focus on core technology R&D and scenario-based innovation in high-speed interconnection.Aligning with demands for higher transmission rates,superior energy efficiency,and comprehensive scenario adaptability,we will develop customized solutions tailored to emerging scenarios such as AI data centers and edge computing nodes.Through continuous technological iteration,we will drive the evolution of data center interconnect architectures toward greater efficiency,intelligence,and lower carbon emissions,providing robust technical support for the sustainable growth of the global digital economy.
